Optical Penta Prisms, Customized

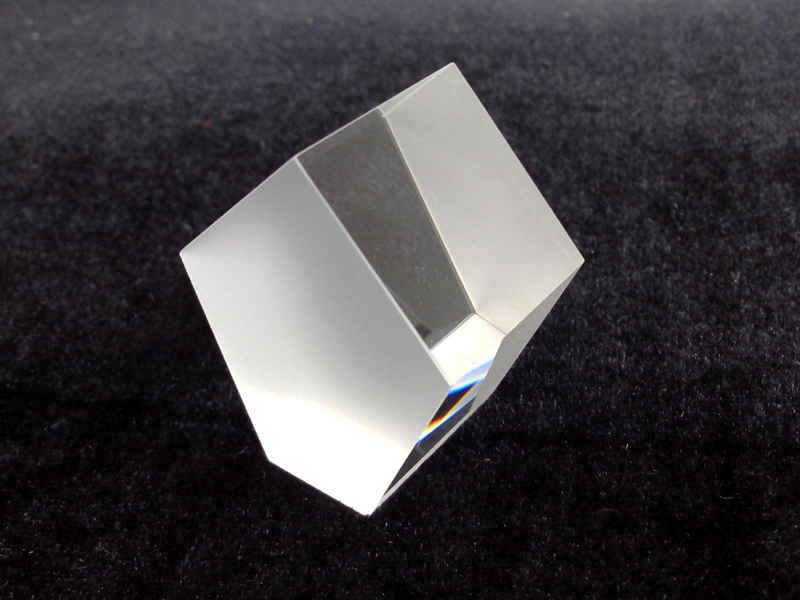

penta-prism


    The Optical Penta Prism can deviate an incident beam without inverting or reversing to 90 degree. The deviation angle of 90 degree is independent of any rotation of the prism about axis parallel to the line of intersection of the two reflecting faces. It is commonly used in Plumb Level, Surveying, Alignment, Range Finding and Optical Tooling. The reflecting surfaces of the prism must be coated with a metallic or dielectric coating. The standard Penta Prism reflecting surfaces are coated with aluminum or enhanced aluminum.

    Creator Optics ( CNCO ) is a manufacturer of customized optical penta prisms in China. The company can provide various penta prisms made from optical glass and crystals.

    The available materials of optical penta prisms are as follows: BK7 and other optical catalog glass, UV and IR grade fused silica, synthetic sapphire monocrystal, etc.




The specifications of customized optical penta prisms are as follows:

penta-prism-0
penta-prism-DWG

arrow Material: BK7 and optical glass, fused silica, sapphire
arrow Size arange: 10mm to 50mm, customized available
arrow Size tolerance: +/-0.2mm
arrow Surface Quality: 60/40, 40/20
arrow Surface Accruacy: 1/4 lambda per inch at 633nm
arrow Coating: MgF2 Single-layer Anti-reflection coating (SLAR) Aluminum Coating + Black Paint




* For more information or other materials and requests, please contact us.
